MEPlinx

MEPlinx is a add on to Revit to automatically create co-ordinated layouts in 2D and 3D.

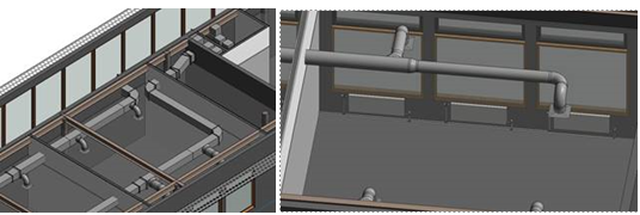

  • Examine how the services fit within the building model with respect to structural elements and other services.

  • Customise uploaded template library files on a project by project basis to enhance the MEPlinx library with actual manufacturers’ content.

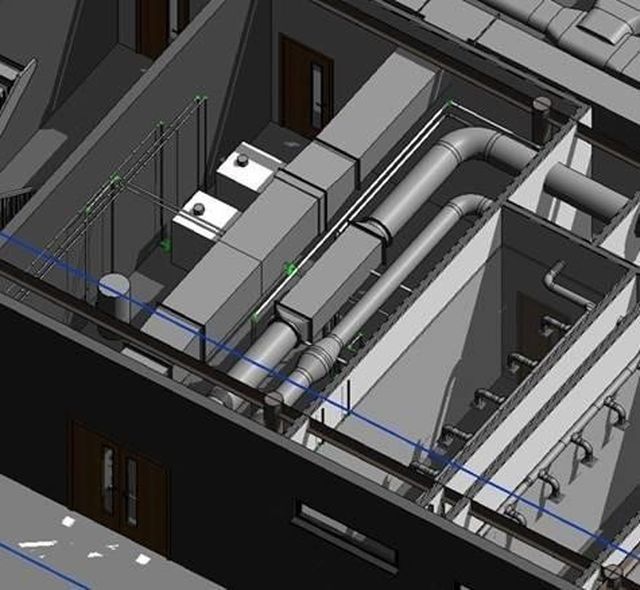

MEPlinx is a Revit MEP add-on application which enhances the export of 2D semi co-ordinated mechanical services into fully 3D co-ordinated layouts by importing the Mechanical services layouts into the linked Revit MEP model.

MEPlinx

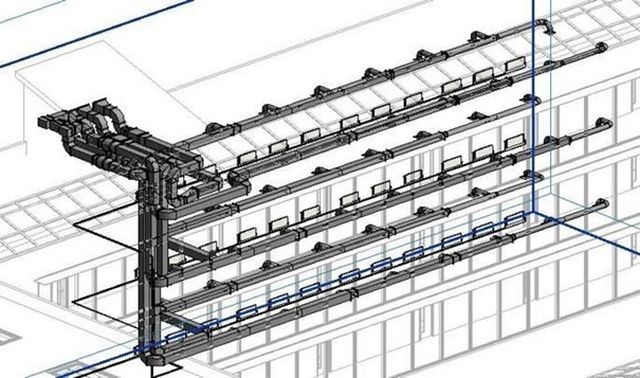

Ductwork and LPHW pipework can be imported on a system by system basis or as a complete project to ascertain how the services fit within the linked building model.

Utilising Revit functionality allows the users to view general wireframe views or specific cutaway or sections showing detailed areas of interest.

Once imported you can utilise all Revit functionality to amend layouts or to produce 2D drawings based on the 3D imports.
